Video Interface - Audi RMC, MMI3G, MMI3G+, VW RNS 850 - HSD 6.5",7" & 8" - Touch

• This Video Interface allows to integrate external Multimedia devices into the Infotainment system of the vehicle, using the original car’s monitor

• With this interface, the source changing is possible to be done from the multifunction steering wheel or from the MMI control panel (depending on the vehicle’s model *), in addition to other possibilities

It also allows to connect devices controlled by touch screen, a touch panel must be installed (NOT INCLUDED)

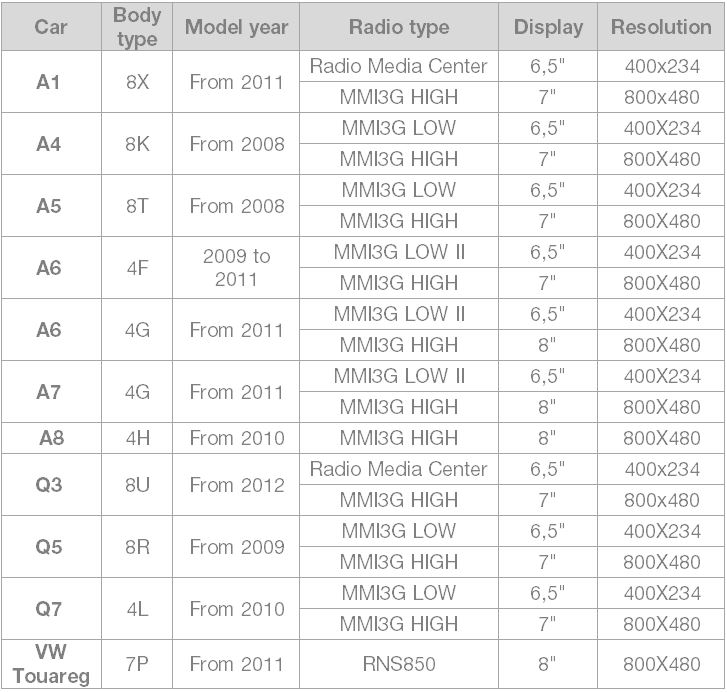

Compatibility table: (in case you have any doubt about your vehicle, please contact us)

*The Interface ‘s compatible RMC/MMI devices are equipped with the HSD image connector showed below (PINK: 400x234/GREY: 800x480)

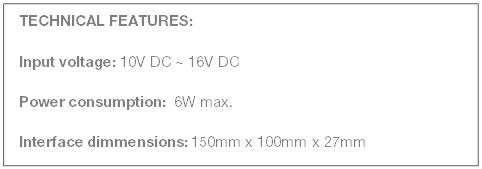

Technical specifications:

Inputs:

• 1x RGB
• 3x AV (NTSC and PAL)
• 1x CVBS (for Rear View Camera)
• 1x HSD connection for the vehicle’s monitor.

Outputs:

• 2x CVBS (Video Out)
• 1x Audio L/R

*Source changing:

• Steering Wheel “iNAV” or “MODE” button (depending on the vehicle).

• MMI’s control panel “NAV” button (depending on the vehicle).

• RNS' 850 "NAV" button (check notes)


• Remote controller (included)
• External switch (included)

Remote functions:

If an external DVD player or TV Tuner (which allows remote functions) is installed, they can be controlled using the touch screen

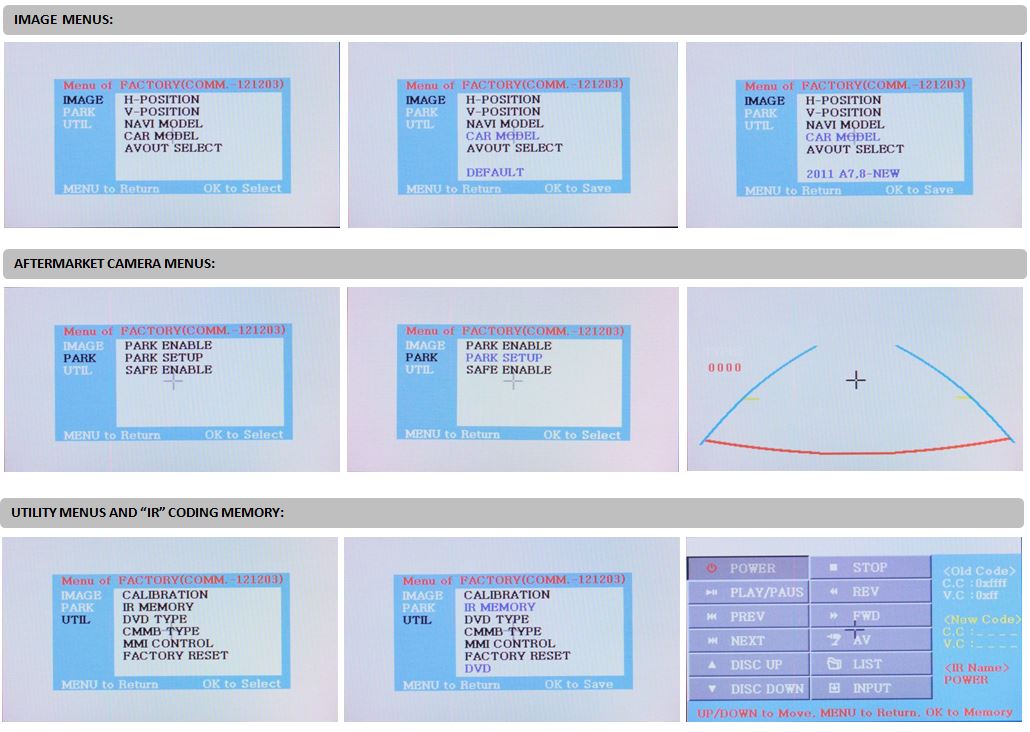

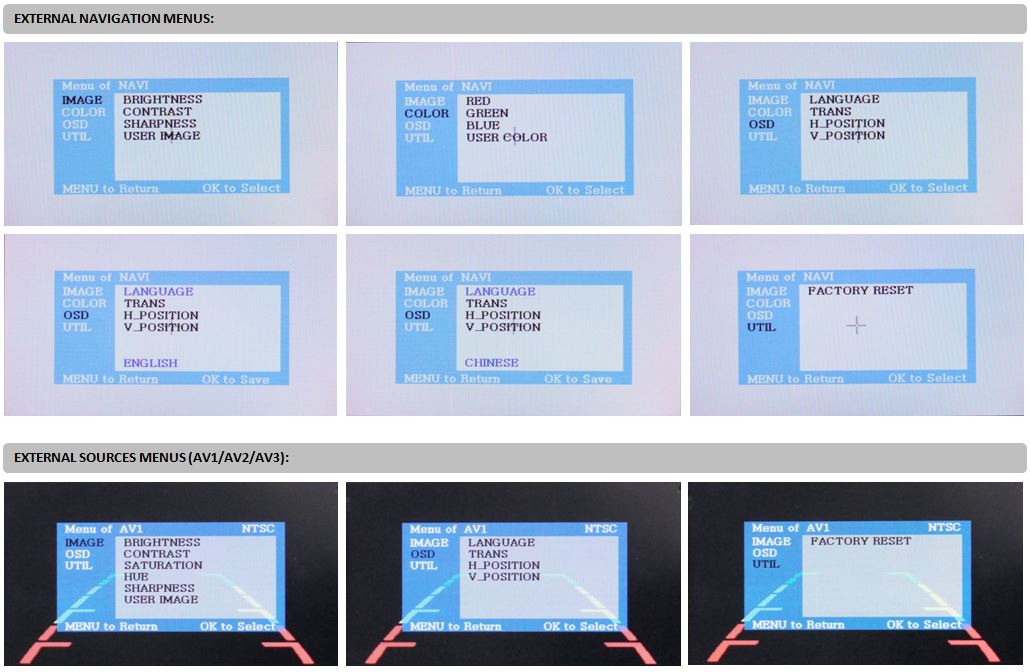

Interface's available menus:

• Car video interface module
• Remote controller with IR cable or OSD keypad
• Remote mode switch button
• Cables set
  • Power cable
  • A/V cable
  • Cable for display connection
  • RGB cable
  • Power cable for rear view camera
  • Touch in cable
  • Touch out cable

• This Multimedia Interface only allows video signal integration/switching; for audio signal integration you have to connect your device’s (DVD, TV Tuner, Navigation…) audio outputs to the vehicle’s AUX-IN input or installing our audio integration voice modules. Making this procedure your audio signal will be reproduced in your vehicle’s speakers
